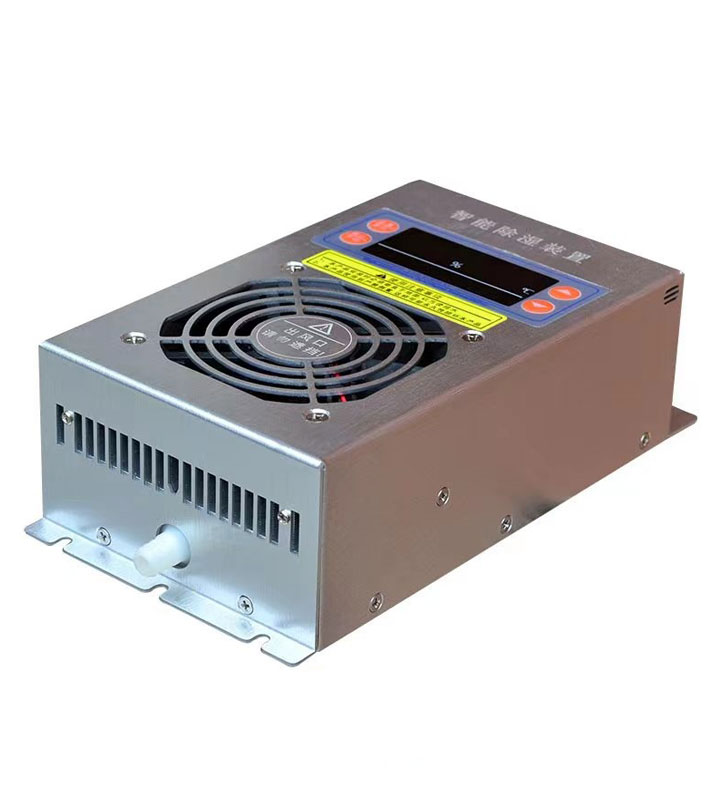

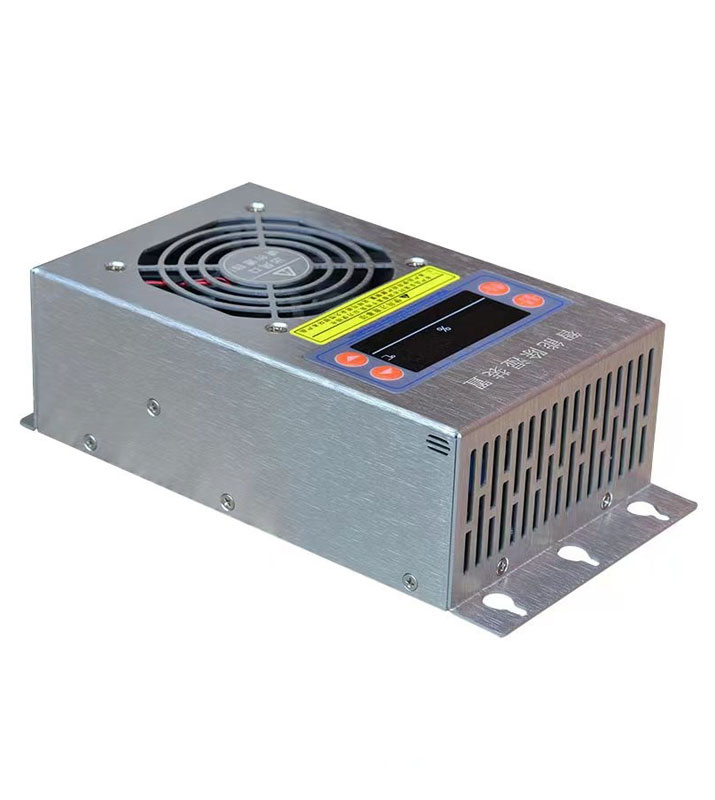

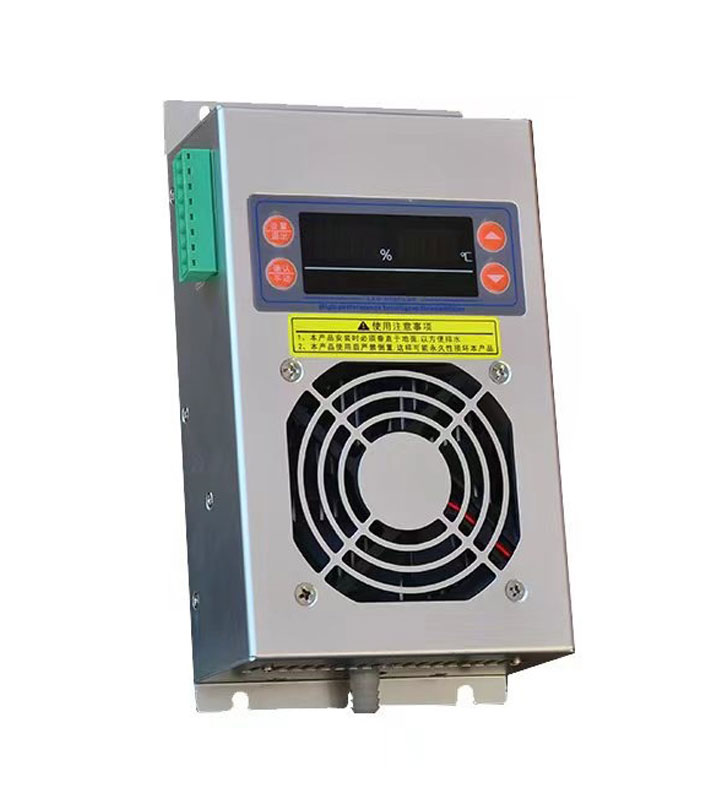

The CSEB DC cabinet dehumidifier runs directly on 12V, 24V or 48V DC, or on AC220V, so it fits energy storage, telecom and distribution cabinets without a separate power supply. The 60W model removes 380 mL/24h at 35°C and 85% RH. An anodized aluminum housing handles heat dissipation, and water drains out through a silicone hose. Choose 20W to 60W, and add dew-point control with heater output (T), fan control (J), status output (H) or fault alarm (E).
Availability:In Stock
CSEB Series Thermoelectric Dehumidifier for Distribution Cabinets and Energy Storage – Electrical Box and Enclosure Condensing Dehumidifier, Factory Direct Supply
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Power Supply | AC220V (DC12V, DC24V, DC48V) | Dehumidification Efficiency | 380 mL/24h (60W, at 35°C, RH = 85%) |
| Heating Power | 50–300W | Dehumidifying Temperature | 5°C to 45°C |
| Power Options | 20W–60W | Operating Temperature | -25°C to 75°C |
| Humidity Detection Range | 20%RH to 98%RH | Temperature Detection Range | -20°C to 85°C |
| Dehumidification Start Value | 25%RH to 98%RH | Temperature Start Value | 1°C to 55°C |
| Humidity Accuracy | ±3%RH | Temperature Accuracy | ±1°C |
| Display Type | 6-digit digital display | Display Resolution | 0.1°C |
| Housing Material | Anodized aluminum alloy | Dimensions | 180 × 110 × 62 mm (H × W × D) |
| Net Weight | 1 kg | Drain Hose | Silicone, D10 mm |

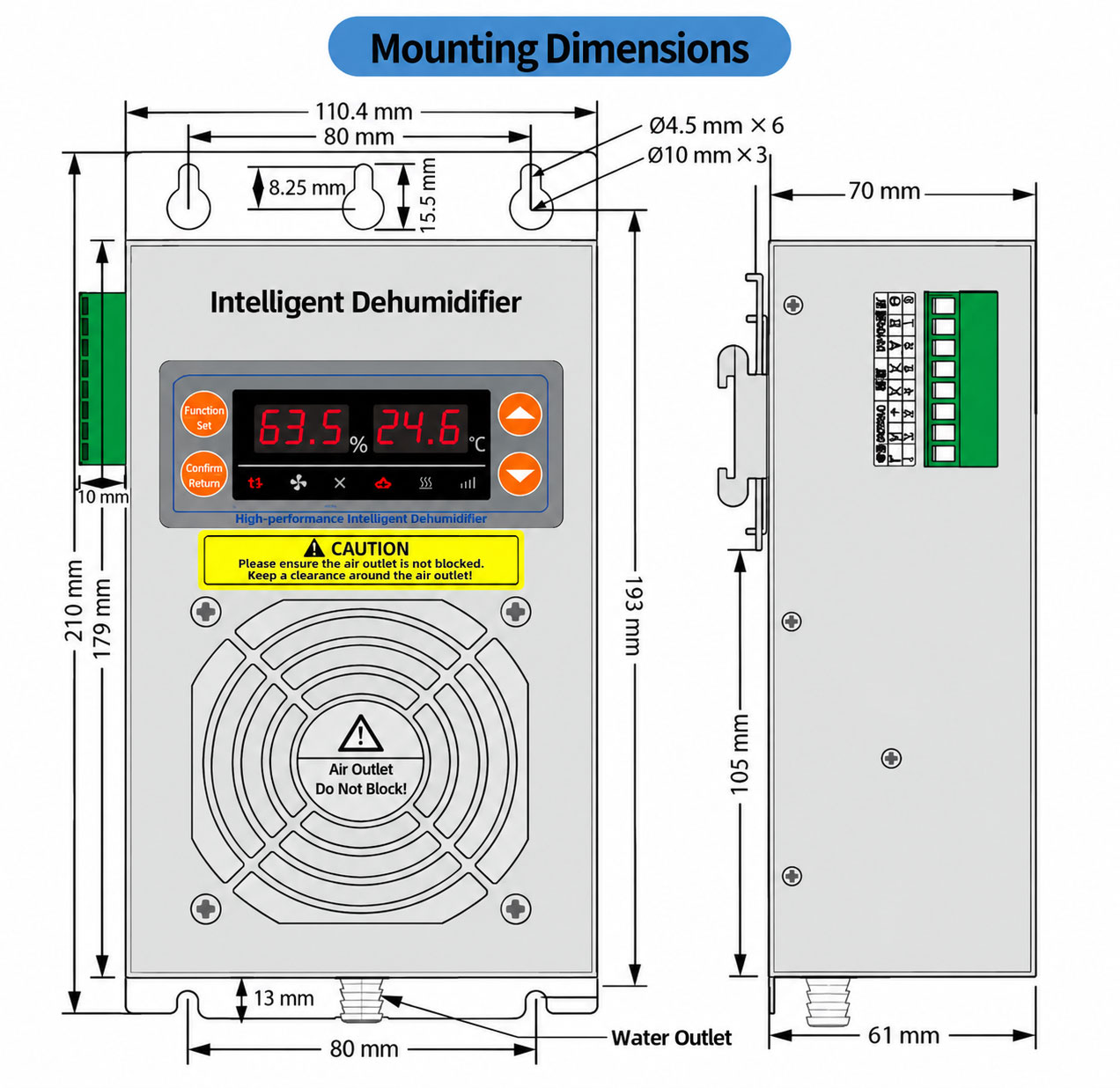

Fixed size: 185 (H) × 110 (W) × 62 (D) mm
Dehumidifying power: 20W, 30W, 40W, 50W, 60W
②: Product function code – the dehumidifier product code is 80.
③: Dehumidifying power
30 means 30W dehumidifying power; 40 means 40W dehumidifying power.
④: External load
