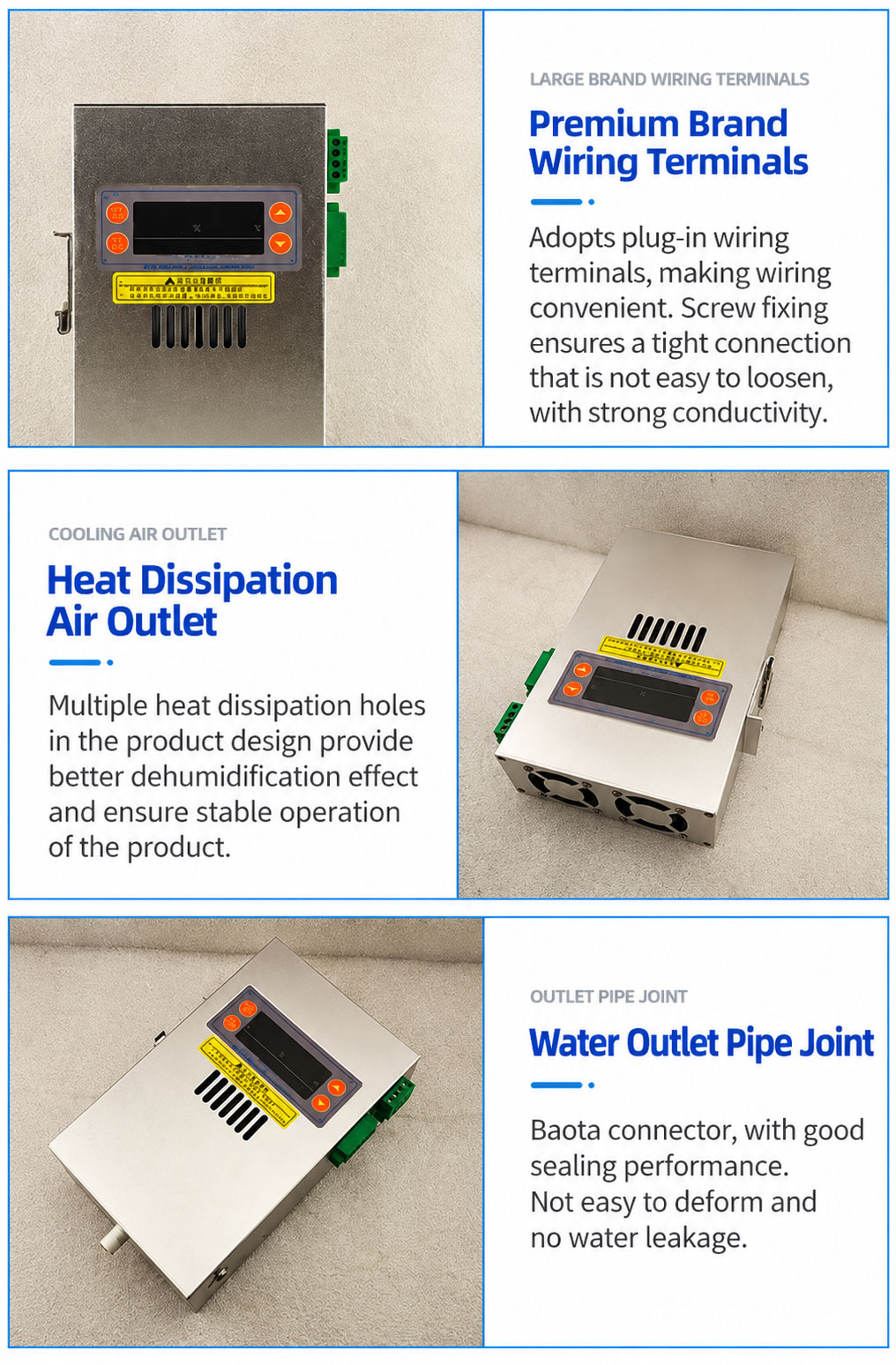

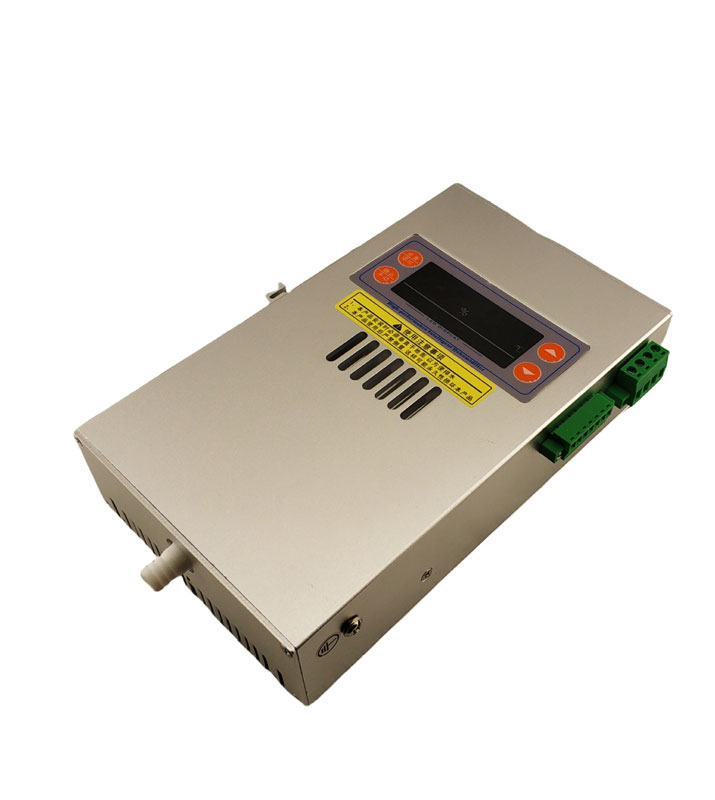

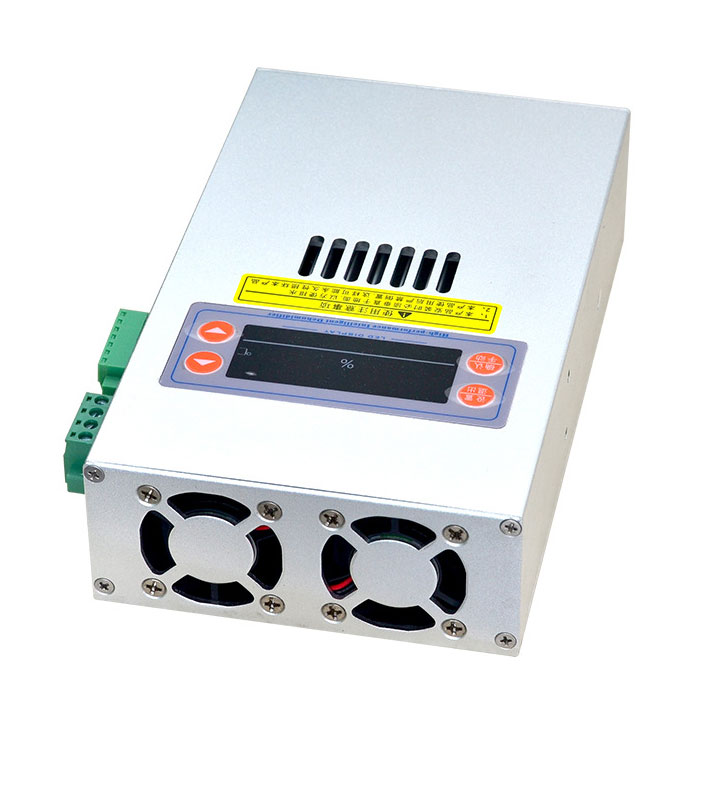

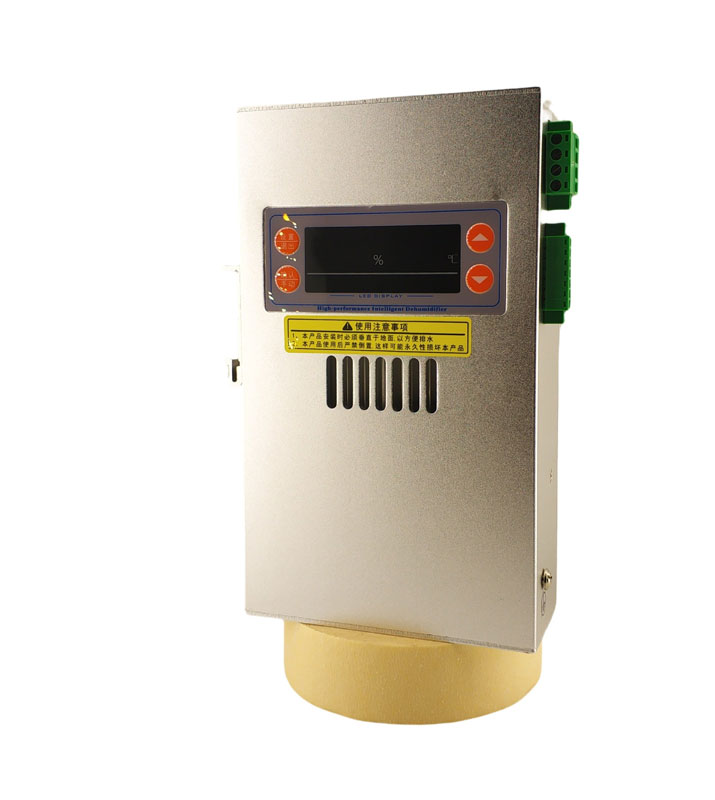

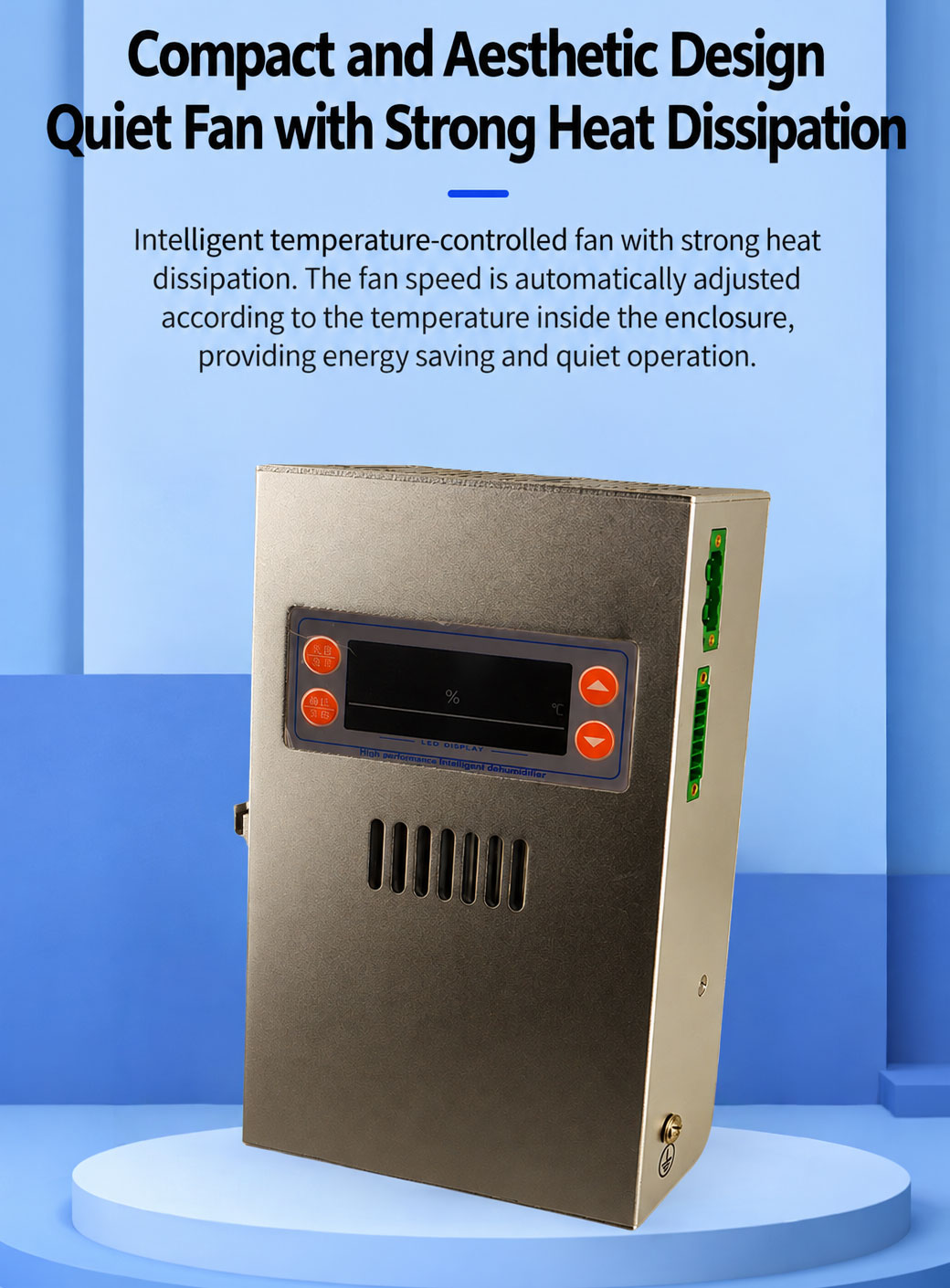

The CSH ultra-thin DIN rail dehumidifier fits where other units cannot: at just 47 mm thick, it clips onto a DIN rail in control cabinets, distribution boxes and energy storage enclosures. The 60W model removes 588 mL/day at 35°C and 85% RH. An aluminum alloy housing doubles as the heat sink, dual fans keep airflow steady, and water drains out through a 1.5 m silicone hose. Dehumidification starts at an adjustable set point from 25% to 98% RH.
Availability:In Stock
| Item | Value |
|---|---|
| Model | CSH |
| Brand | Gongchuang Technology |
| Private Label Available | Yes |
| Country/Region of Origin | China |
| Place of Origin | Hunan |
| Application | Distribution boxes and other equipment |
| Model | Humidity Control Range | Rated Power | Mounting | Dehumidification Capacity |
|---|---|---|---|---|
| CSH | 25%–98% | 60W | DIN rail mounting | 588 ml/d |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Power Supply | AC220V | Dehumidification Efficiency | 588 mL/day (60W, at 35°C, RH = 85%) |
| Heating Power | 50–300W | Dehumidifying Temperature | 5°C to 45°C |
| Power Options | 15W–80W | Operating Temperature | -25°C to 75°C |
| Humidity Detection Range | 20%RH to 98%RH | Temperature Detection Range | -20°C to 85°C |
| Dehumidification Start Value | 25%RH to 98%RH | Temperature Start Value | 1°C to 55°C |
| Humidity Accuracy | ±3%RH | Temperature Accuracy | ±1°C |

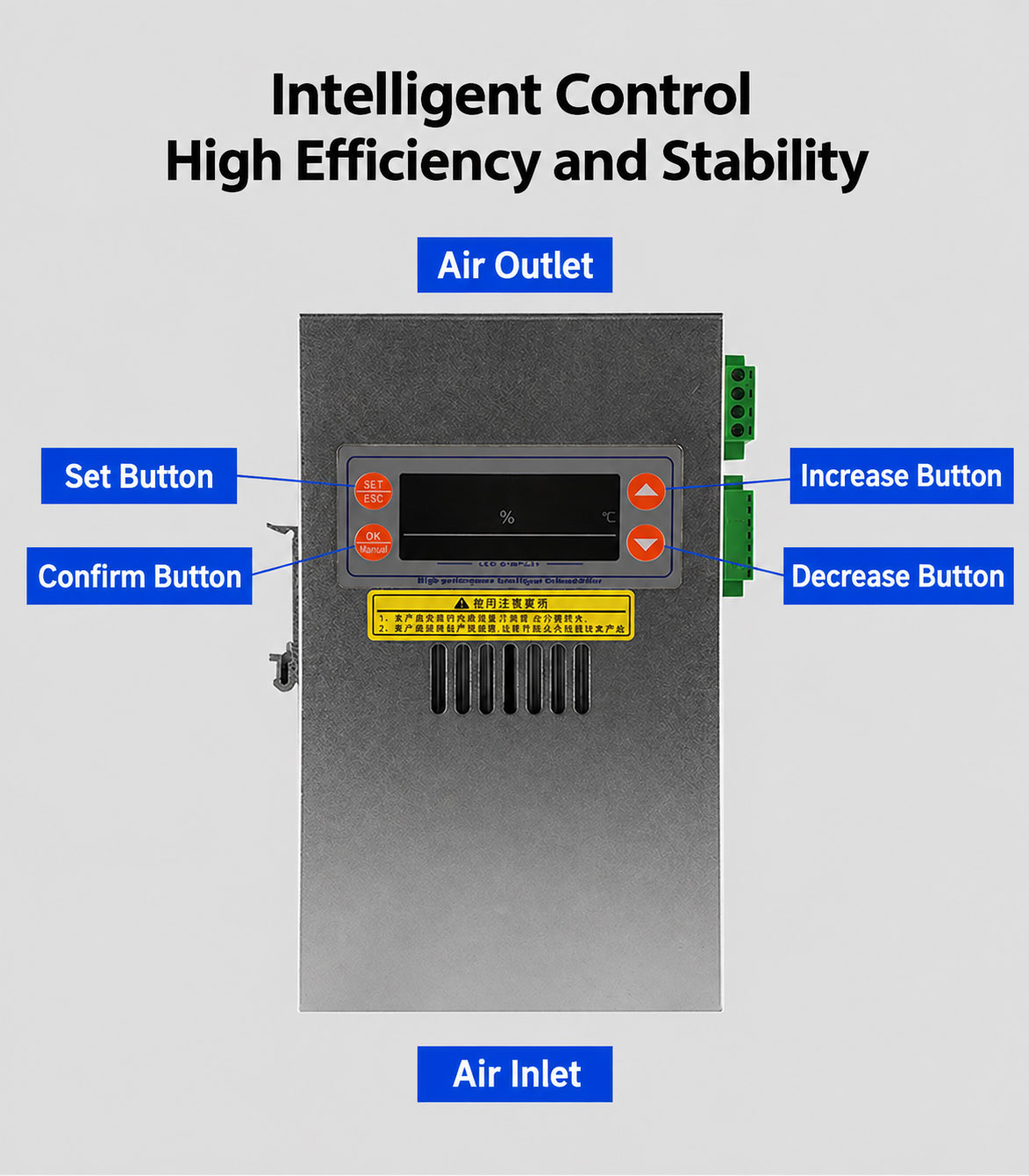

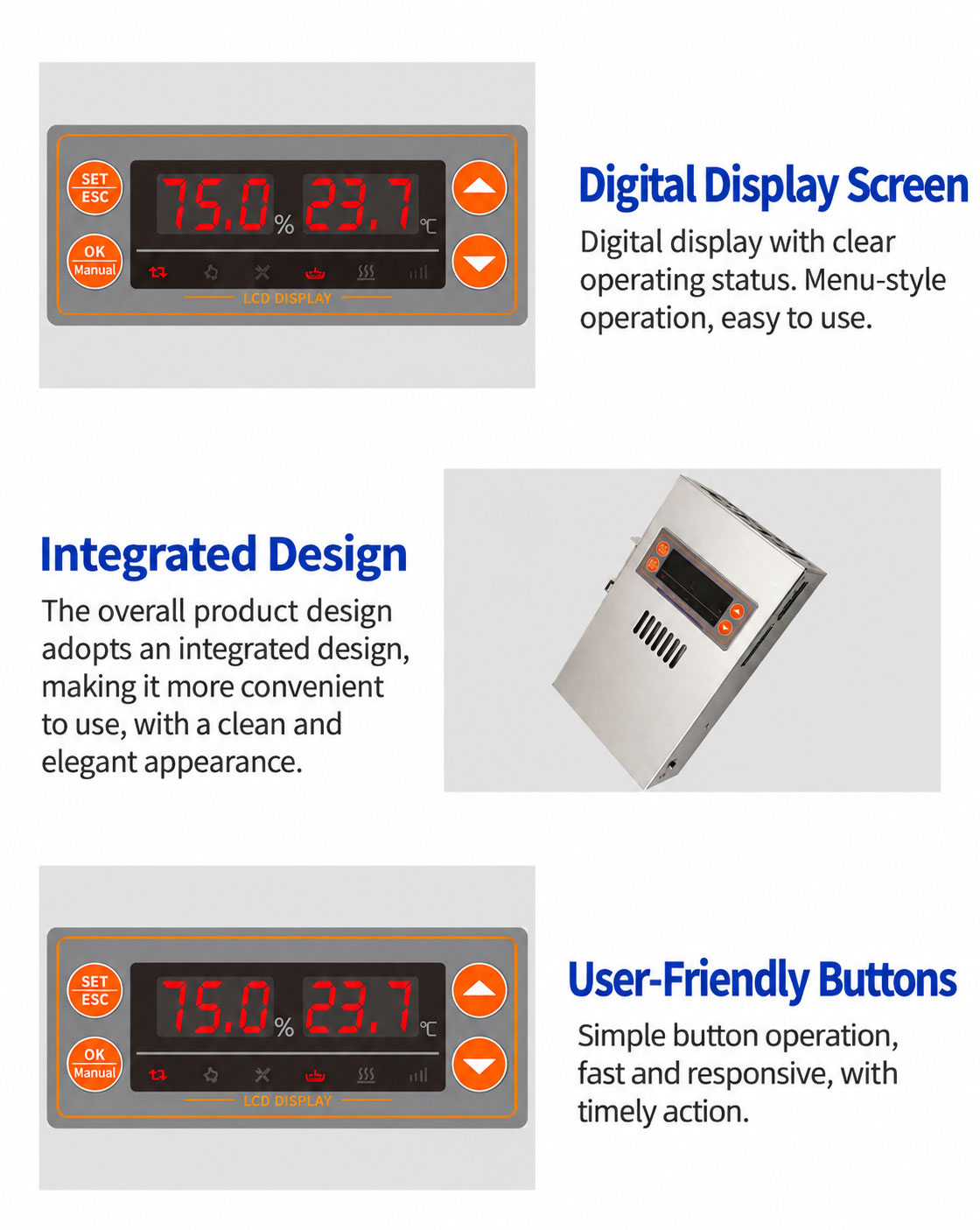

| Display Type | 6-digit digital display | Display Resolution | 0.1 |

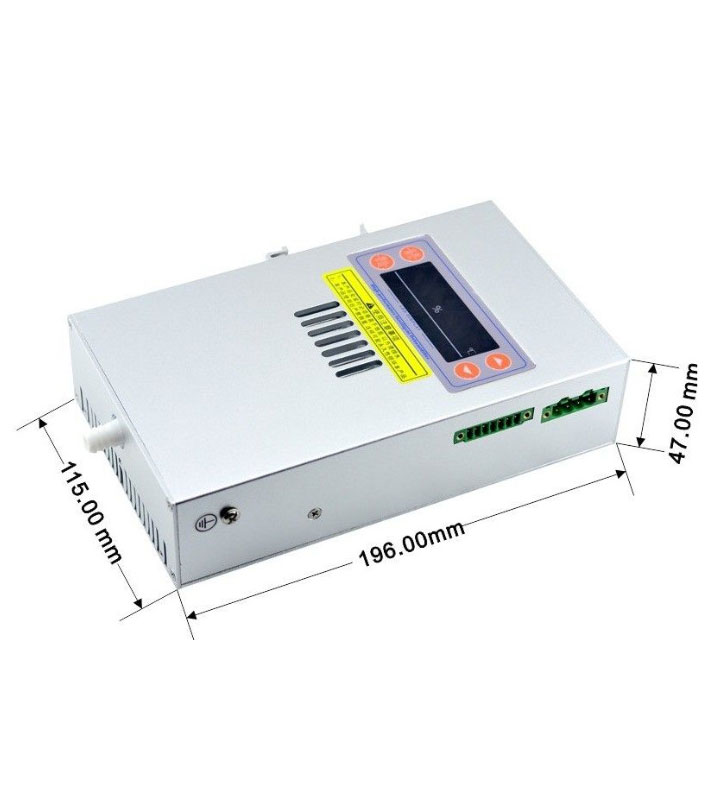

| Housing Material | Aluminum alloy | Dimensions | 115 × 47 × 196 mm (W × D × H) |
| Net Weight | 1 kg | Drain Hose | Silicone, D10 mm, L1.5 m |

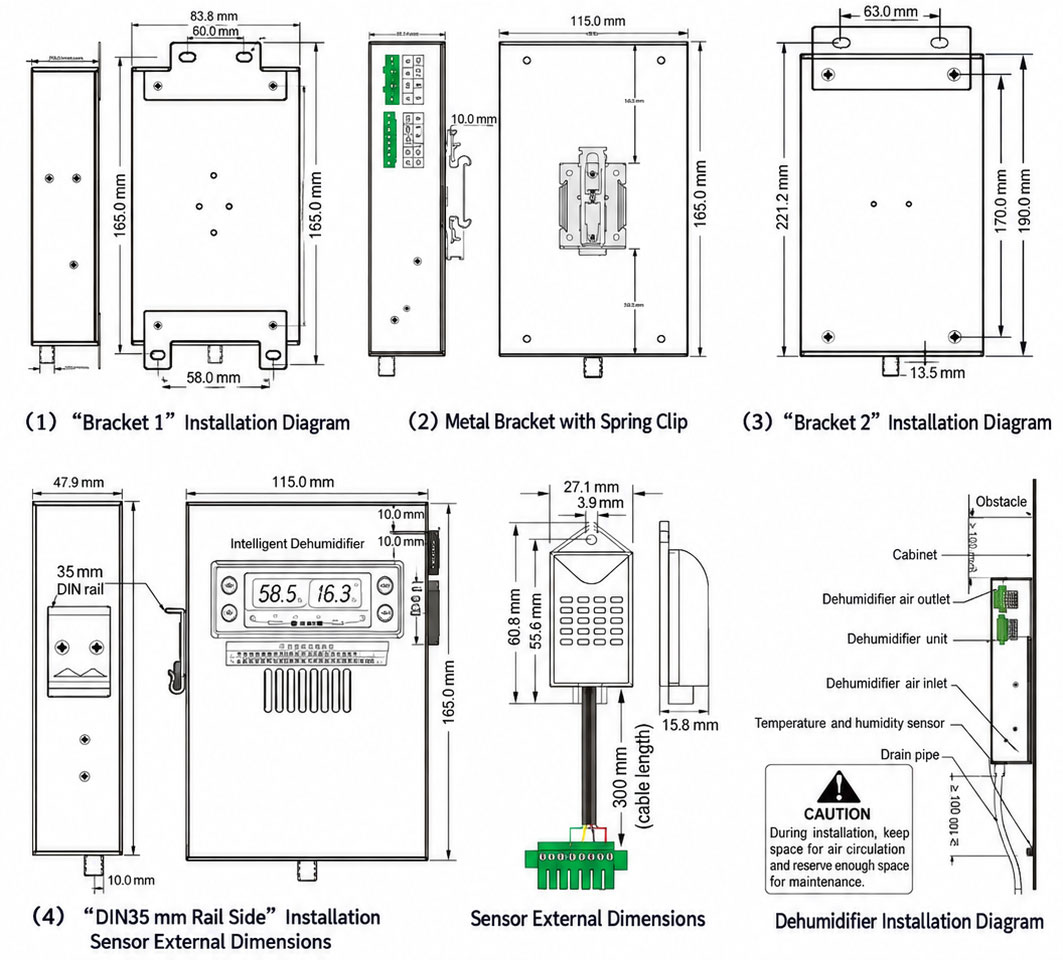

Dimensions: 197 (H) × 115 (W) × 47 (D) mm
Dehumidifying power: 20W, 30W, 40W, 50W, 60W
Note: Models without “T” in the model number do not have dew-point detection.
1. Automatic defrost:
All series have an automatic defrost function. When frost forms on the condensing plate, the dehumidifier defrosts automatically before resuming dehumidification.
2. Low-temperature heating (optional, selected according to site conditions):
When the dehumidifier detects that the ambient temperature is low, it automatically switches on an external heater for temperature compensation.
