The GCU-8030S mini electrical cabinet dehumidifier is built for small enclosures where space is tight. Measuring just 45 mm thick, it mounts on a 35 mm DIN rail or bracket without any cut-out. A 304 stainless steel housing, all-copper heat dissipation and a turbo fan deliver compact, efficient drying. The digital display shows live temperature and humidity, the set point is adjustable, and RS485 communication is available. Power options range from 20W to 60W.
Availability:In Stock
GCU-8030S Mini Electrical Cabinet Dehumidifier – Smart Compact Anti-Moisture Dehumidifier, Top-Mounted Dehumidifier, Anti-Condensation Device
| Category | Item | Value |
|---|---|---|
| Basic Information | Product Name | Intelligent Dehumidifying Device |
| Model | GCU-8000 Series (GCU-8030S) | |
| Place of Origin | Hunan, China | |
| Customization | Available | |
| Electrical Specifications | Rated Voltage | AC220V |
| Rated Power | 30W–60W | |
| Output Signal | 0.1 mA | |
| Measurement Performance | Control Type | Temperature and humidity |
| Measured Object | Space dehumidification and temperature control | |
| Temperature Range | -25°C to 125°C | |
| Temperature Error | ±0.5°C | |
| Humidity Range | 20%RH to 98%RH | |
| Humidity Error | ±3%RH | |
| Physical Parameters | Dimensions | 110 × 45 × 150 mm |
| Weight | 1.6 kg | |
| Housing Material | 304 stainless steel | |
| Cut-out Size | No cut-out required | |
| Mounting Type | Bracket mounting | |
| Features | Product Features | Compact size with high efficiency, digital display with adjustable parameters, RS485 communication available, multiple mounting options |

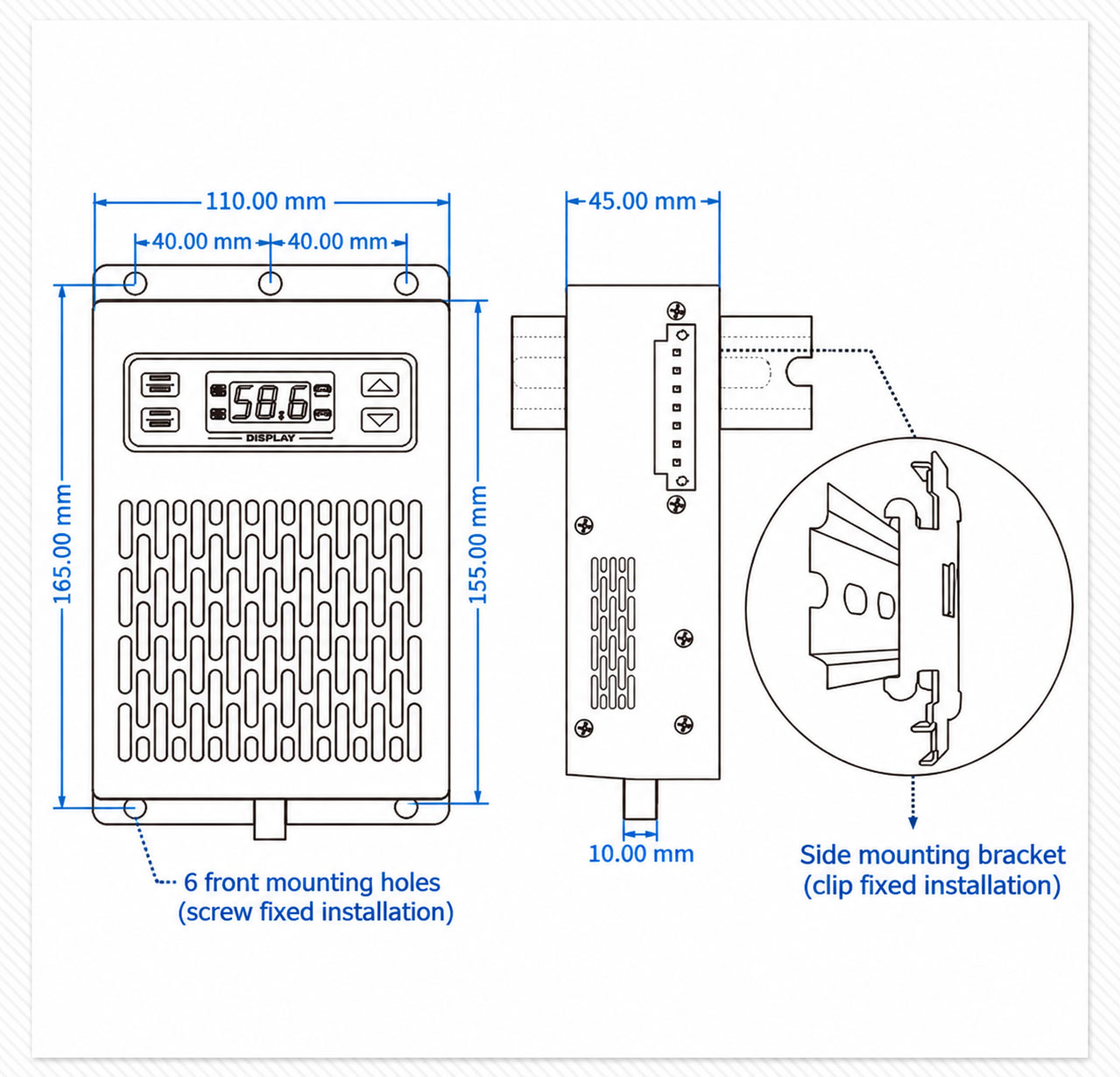

Dimensions: 155 (H) × 110 (W) × 45 (D) mm
Dehumidifying power: 20W, 30W, 40W, 60W

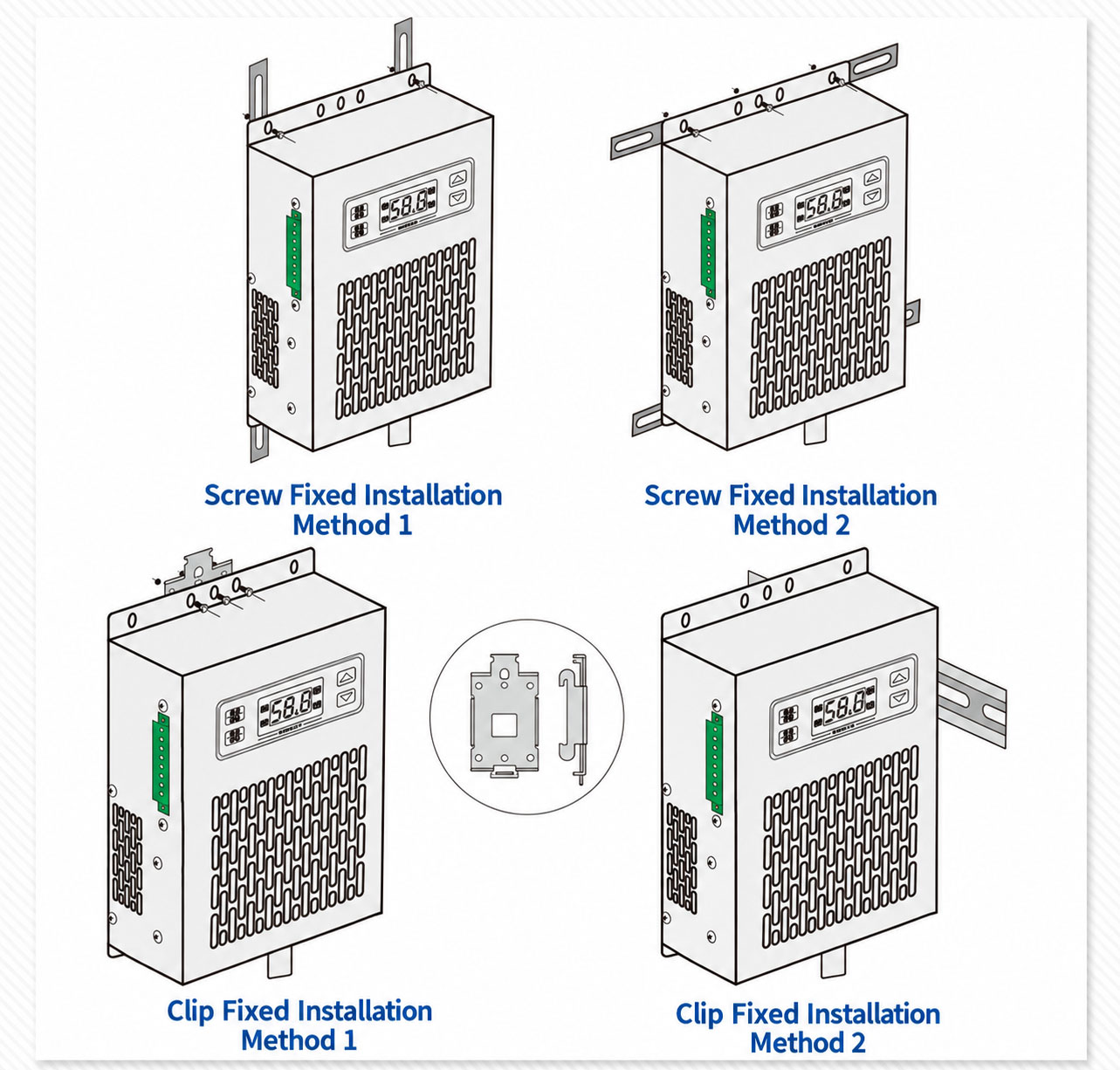

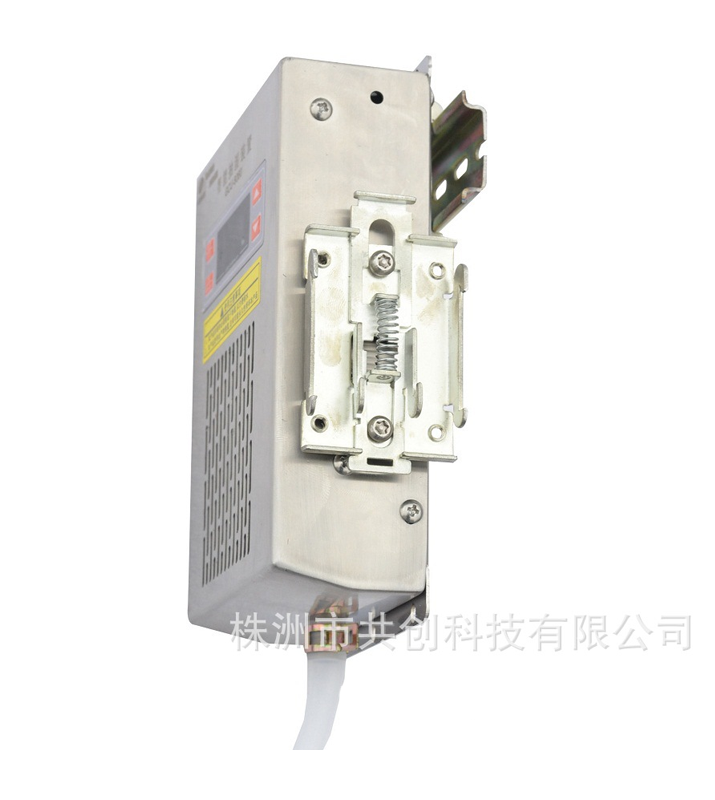

1. Installation Methods: Based on the principles of field usability and maintenance convenience, the unit can be installed using either DIN-rail mounting or bracket hanging via the support mounting hardware. Secure the unit with M4 screws, ensuring it remains perfectly horizontal without any tilting.
2. Clearance Requirements: Maintain a clearance of greater than 10 cm between all sides of the device and surrounding objects to ensure unobstructed airflow from the fan vents.
3. Drainage Tube Setup: Connect one end of the water drainage tube to the outlet port of the device and secure it with a hose clamp. Keep the tube straight and untangled along its path to facilitate smooth drainage, and lead the other end outside the cabinet.
Note: Models without “T” in the model number do not have dew-point detection.
1. Automatic defrost:
All series have an automatic defrost function. When frost forms on the condensing plate, the dehumidifier defrosts automatically before resuming dehumidification.
2. Low-temperature heating (optional, selected according to site conditions):
When the dehumidifier detects that the ambient temperature is low, it automatically switches on an external heater for temperature compensation.
