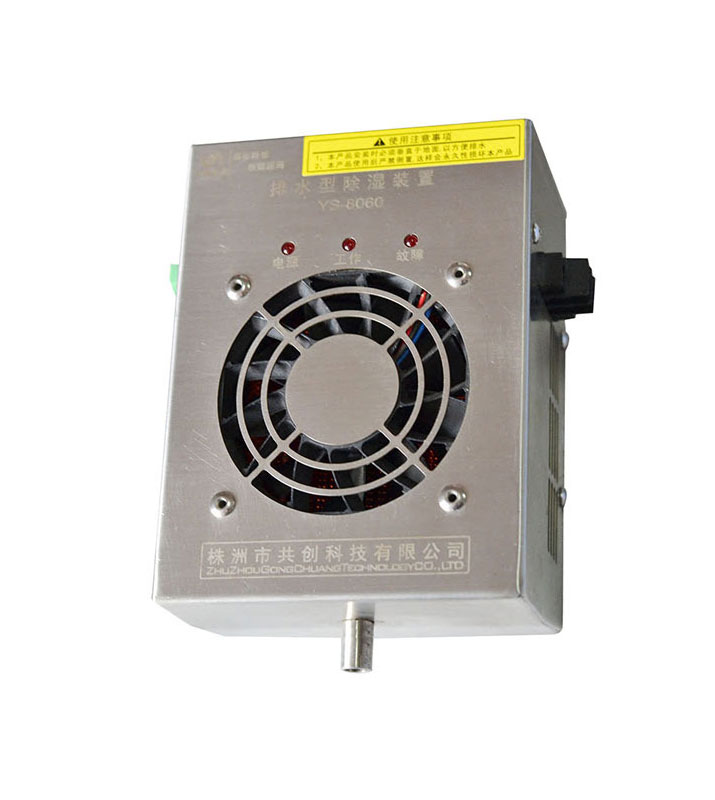

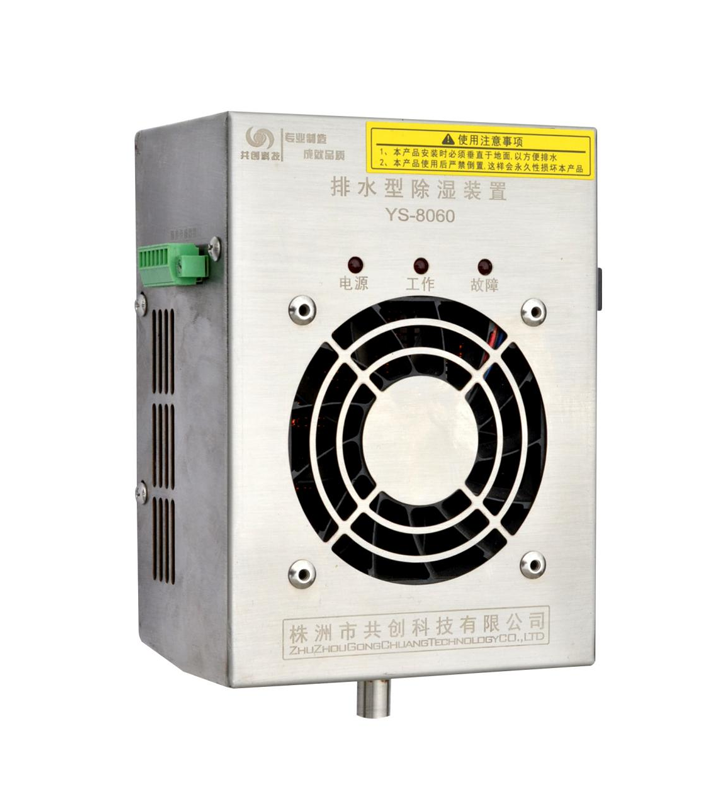

YS-8060 Anti-Condensation Drain Dehumidifier

The YS-8060 anti-condensation dehumidifier removes moisture from electrical cabinets and drains it away continuously through a 1.5 m silicone hose, so there is no tank to empty. Copper tube heat dissipation keeps condensing efficient, and three indicator lights show the unit’s status at a glance. Dehumidification starts at an adjustable set point between 45% and 98% RH, frost on the condensing plate is cleared automatically, and optional low-temperature heating suits cold sites.

Availability:In Stock

Category: Electrical cabinet dehumidifier

Description
Reviews (0)

YS-8060 Anti-Condensation Drain Dehumidifier – Electrical Cabinet Dehumidifying Equipment, Smart Electrical Panel Dehumidifier, Cabinet Anti-Moisture Dehumidifying Device

Specifications

Category	Item	Value
Basic Information	Brand	Gongchuang Technology
	Model	YS-8060
	Customization	Available
	Control Type	Humidity, humidity
Electrical Specifications	Power Supply	AC220V
	Heating Power	50–300W
	Rated Power	88W / 98W / 128W
Measurement Performance	Humidity Detection Range	20%RH to 98%RH
	Humidity Accuracy	±5%RH
	Dehumidification Start Value	45%RH to 98%RH
	Temperature Detection Range	-20°C to 120°C
	Temperature Accuracy	±1°C
	Temperature Start Value	1°C to 55°C
	Operating Temperature	-25°C to 85°C
	Dehumidifying Temperature	5°C to 45°C
	Dehumidification Efficiency	1 L/day (120W, at 35°C, RH = 85%)
Physical Parameters	Dimensions	280 (H) × 204 (W) × 64 (D) mm
	Net Weight	1.2 kg
	Housing Material	Aluminum alloy
	Cut-out Size	See details
	Mounting Type	See details
	Drain Hose	Silicone, D10 mm, L1.5 m
Display	Display Type	6-digit digital display
	Display Resolution	0.1

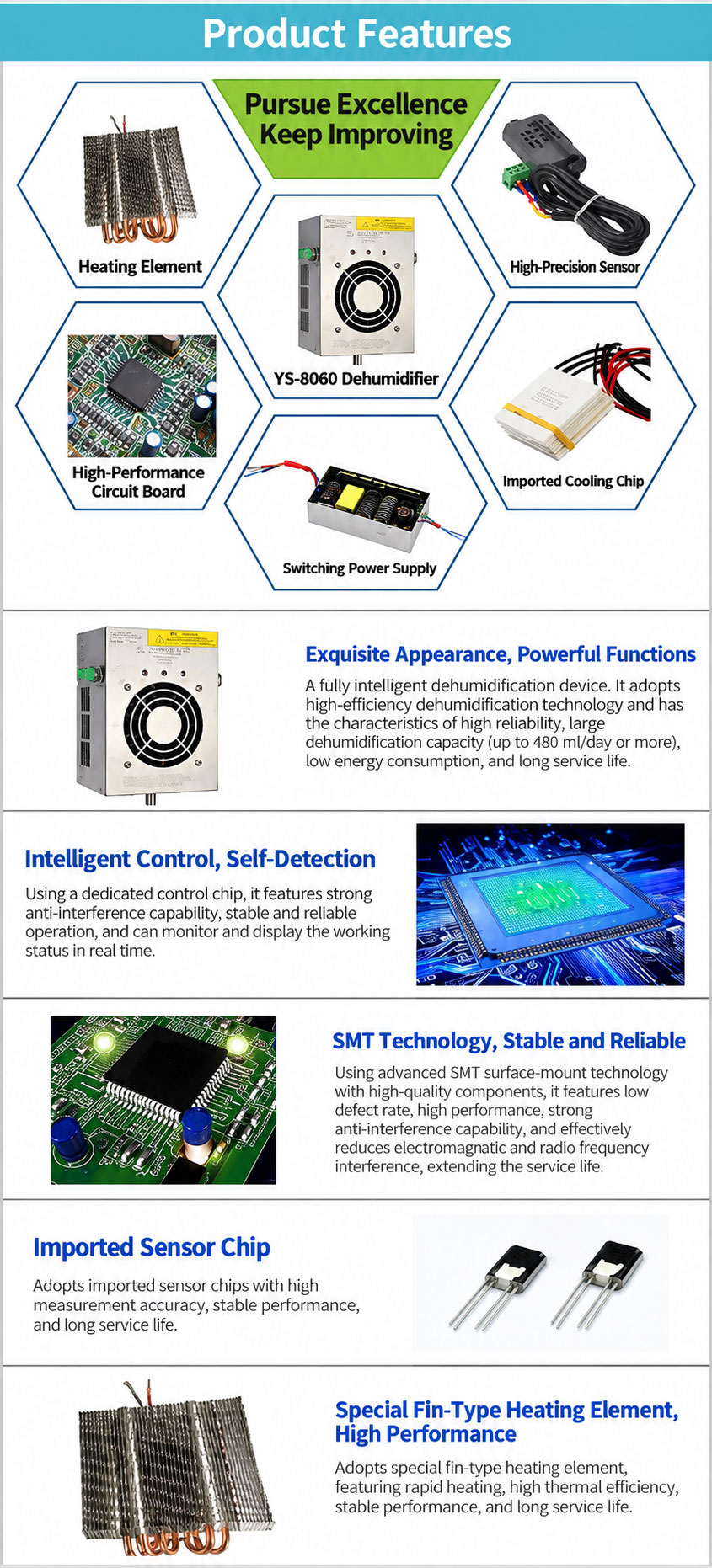

Product Features

304 stainless steel housing
Copper tube heat dissipation
Highest dehumidification efficiency
Three indicator lights show the dehumidifier status
High cost performance (water output of the 60W model: 450 ml)

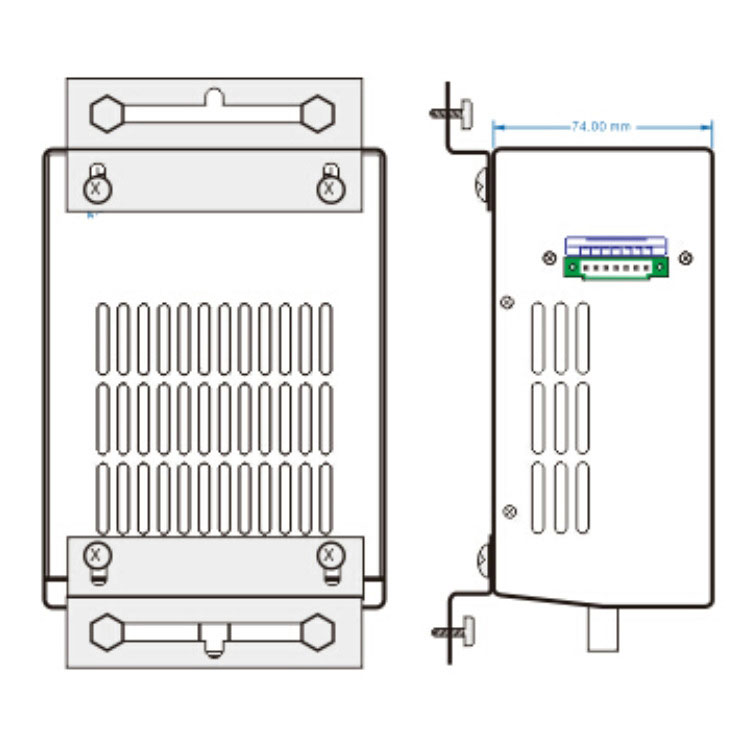

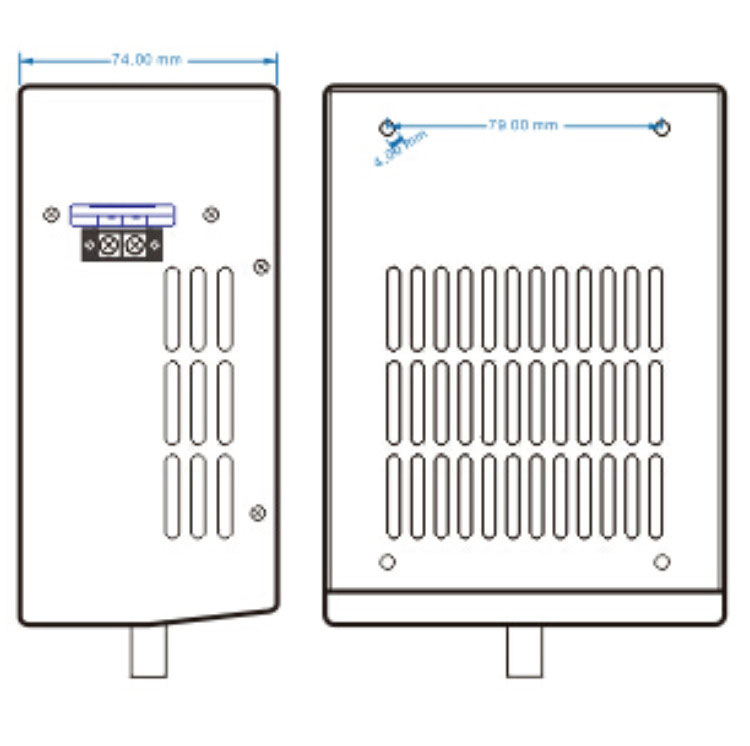

Installation Methods for YS-8060 Anti-Condensation Drain Dehumidifier

SKU Options

Dimensions: 155 (H) × 115 (W) × 72 (D) mm

Dehumidifying power: 30W, 40W, 60W

Installation

Installation Methods for YS-8060 Anti-Condensation Drain Dehumidifier

How Dehumidification Works

When the humidity sensor detects that humidity has reached the upper set limit, the dehumidifier starts dehumidifying. When humidity falls to the set cut-off value, it stops. This cycle repeats to keep humidity under control.
The dehumidifier measures the current ambient temperature and humidity, and its software calculates the dew point of the environment. When the dew point is reached, it starts dehumidifying and switches on the heating contact at the same time. Once the dew point condition is broken, heating stops while dehumidification continues, and the unit stops after a set delay.

Note: Models without “T” in the model number do not have dew-point detection.

Special Functions

1. Automatic defrost:
All series have an automatic defrost function. When frost forms on the condensing plate, the dehumidifier defrosts automatically before resuming dehumidification.

2. Low-temperature heating (optional, selected according to site conditions):
When the dehumidifier detects that the ambient temperature is low, it automatically switches on an external heater for temperature compensation.
