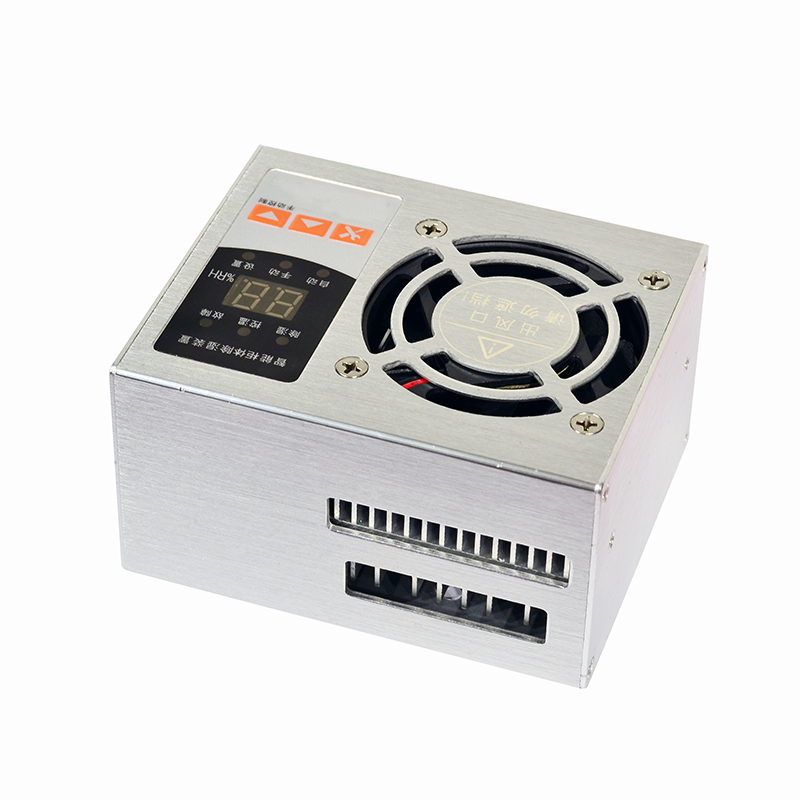

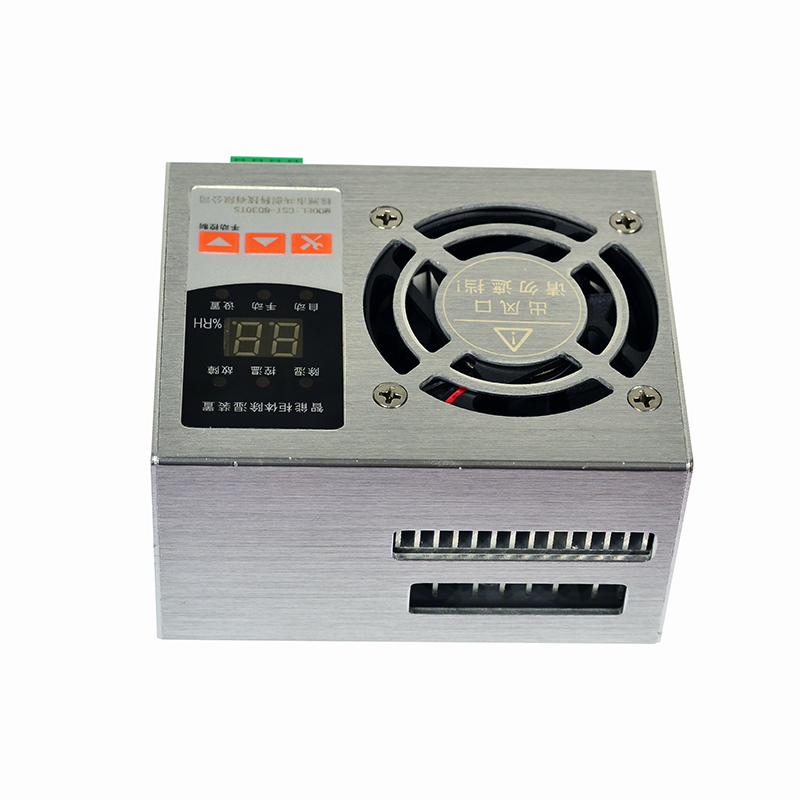

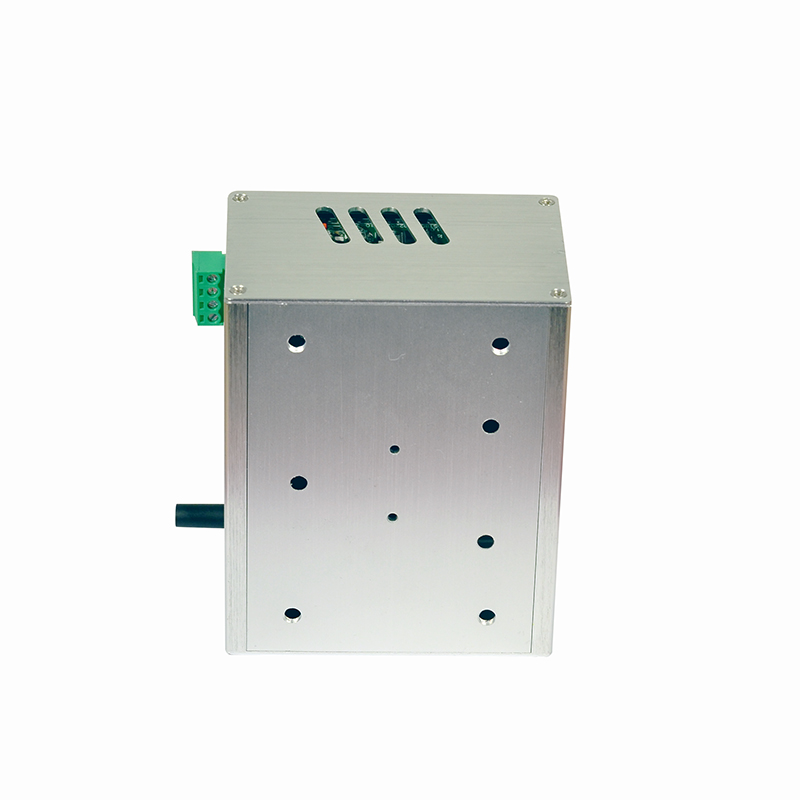

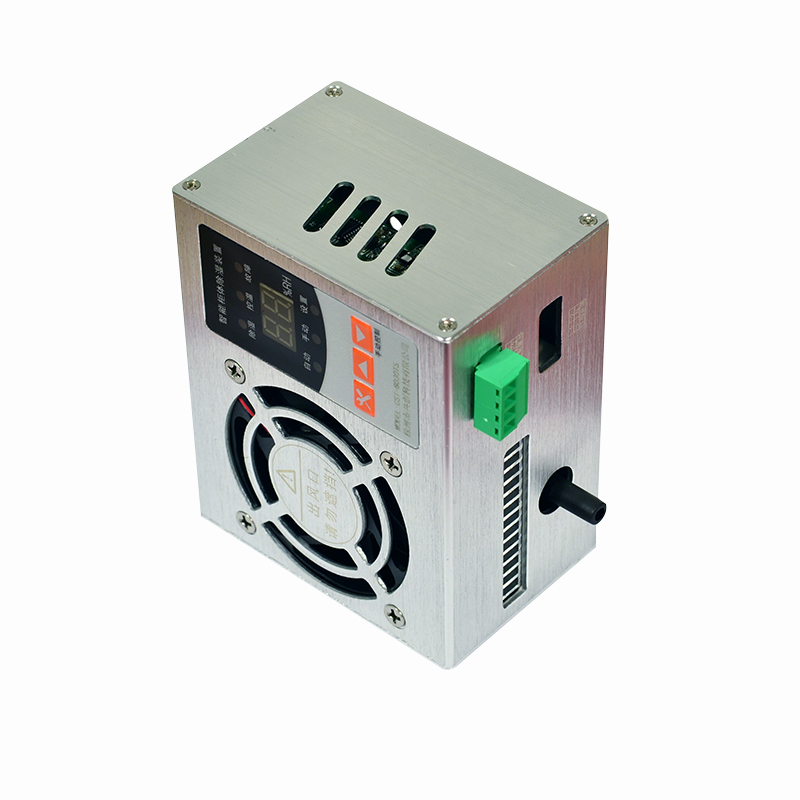

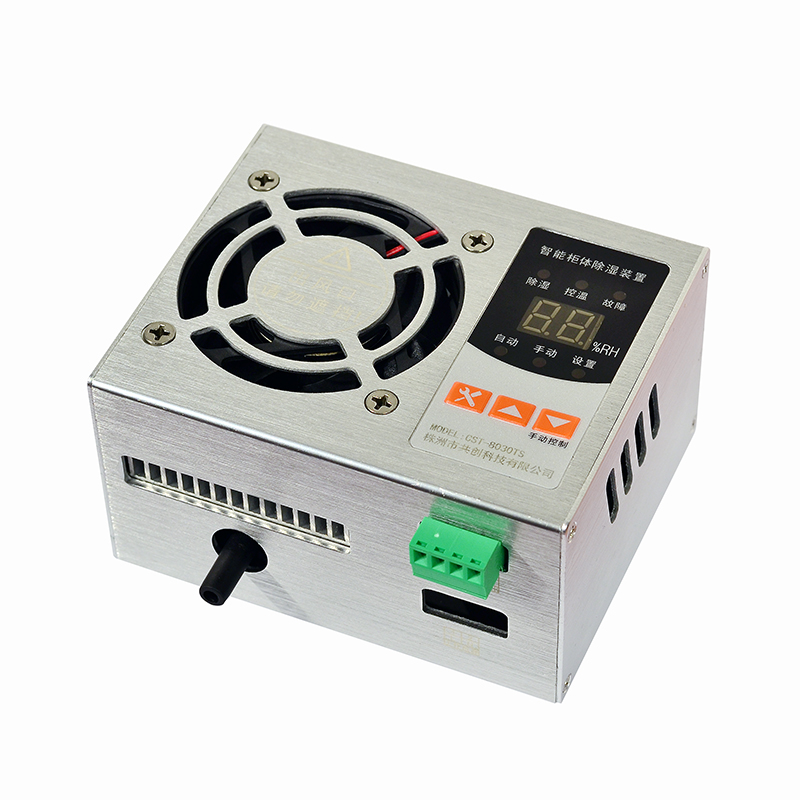

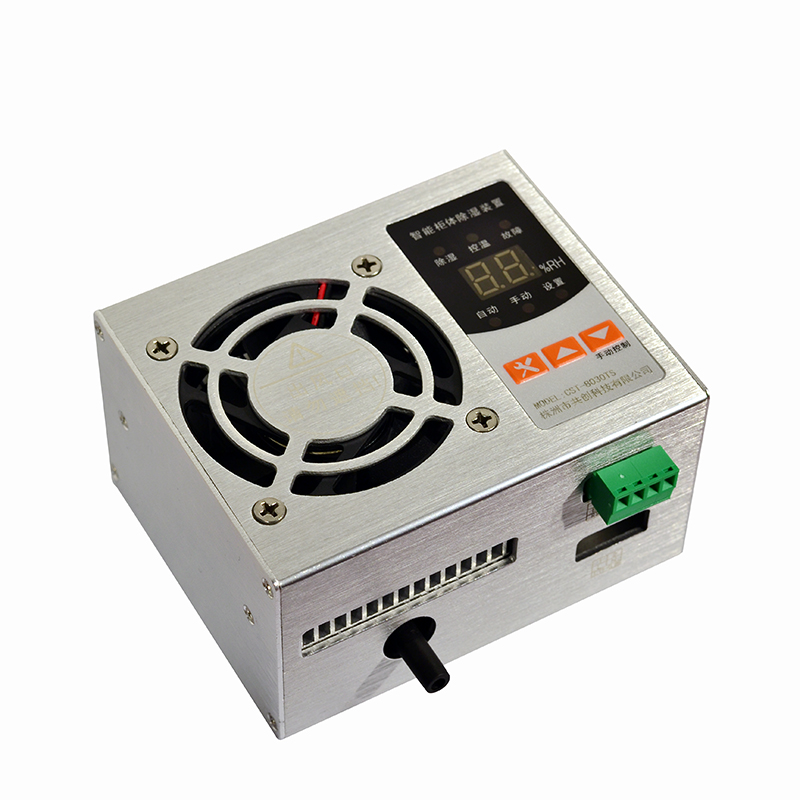

The CST small cabinet dehumidifier is the most compact unit in our range, measuring just 85 × 105 × 58 mm, so it fits tight distribution boxes, instrument panels and control cabinets. An aluminum alloy housing with aluminum profile heat dissipation runs on AC100–220V, with standby power below 5W. Choose 15W, 20W or 30W, set the humidity threshold on the front panel, and add an optional relay output, fault output or RS485 Modbus communication.
Availability:In Stock
| Parameter | Specification |
|---|---|
| Power Supply | AC100V–AC220V, 50Hz; standby power < 5W |
| Dehumidifying Power | 10W / 15W / 20W / 25W / 30W options |
| Measuring Range | Temperature: -19°C to 99°C; Humidity: 10% RH to 99% RH |
| Measurement Error | Temperature: ±1.0°C (0°C to 50°C), ±2.0°C (0°C to 99°C); Humidity: ±3% RH (10% RH to 90% RH), ±5% RH (90% RH to 99% RH) |
| Resolution | Temperature 1°C, humidity 1% RH |
| Control Mode | Humidity control; high/low humidity control; low- or high-temperature control (optional) |
| Control Output | 1 relay output (dry contact), 250VAC/3A or 30VDC/3A (optional) |
| Fault Output | 1 dry-contact fault output (optional). Note: the temperature control output and the fault output cannot both be selected; choose one. |
| Communication | RS485 (Modbus protocol) (optional) |
| Operating Environment | Temperature -19°C to 70°C; humidity ≤ 85% RH; non-corrosive locations |
| Industrial Water Output | 200 ml/24h at 30°C, 80% RH |
Dimensions: 85 (H) × 105 (W) × 58 (D) mm
Dehumidifying power: 15W, 20W, 30W
